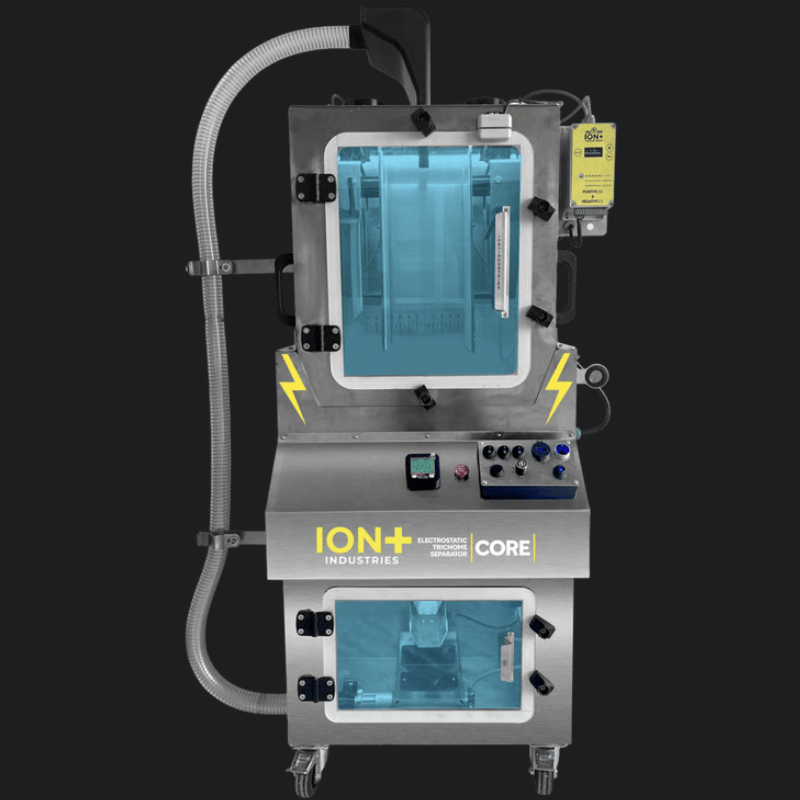

CORE - Electrostatic Trichome Separator – Ion+ Industries

Professional performance in a compact format

The CORE model electrostatic trichome separator redefines electrostatic purification and filtration thanks to its compact and functional design. It is capable of processing up to 650 grams of biomass per hour, maintaining purity levels of 98–99%, even during prolonged sessions.

100% European manufacture

All critical components are manufactured in Europe, guaranteeing reliability, durability and the availability of spare parts in Morocco, Málaga, Madrid and Barcelona.

Materials and design

· Frame made of AISI‑304 stainless steel

· Electrodes made of 1050 anodised aluminium (15-micron coating)

· High-quality European components

· Design optimised for stability and precision

Vibrator (3DMITA – Spain)

· Manufactured by 3DMITA, a company with 15 years’ experience

· 10-year warranty

· Tested on seed counting machines for over 15 years

Electrostatic generators

· European components heat-sealed with silicone

· Protection against dust and moisture

· 5-year warranty

Capacity and performance

· Processing: 650 g/h

· Collection: 250 g every 15 minutes

· Purity: 98–99%

Easy to use

· No professional experience required

· Intuitive and safe system

· Built-in voltmeter (5–500 V) with warning light

Optimal operating conditions

· Temperature: –6°C to 12/15°C

· Recommended humidity: 35%–45%

· Prevents clogging and improves filtration efficiency

Minimal maintenance

· Protected components

· Occasional cleaning of seals with alcohol

· Quick vacuuming to prevent dust build-up

Safety

· Complies with CE

standards

· Doors open only when plates are switched off

· Low voltage → minimal risk

Anti-static bars

· Complete static discharge

· Uniform particle distribution

· Higher speed without loss of quality

Transport and delivery

· Manufacturing time: 10 days approx.

· Can be dismantled to fit onto a European pallet

· Easy to transport in a standard van

Technical specifications

· Height: 135 cm

· Length: 60 cm

· Depth: 40 cm

· Weight: 70 kg

· Capacity: 650 g/h

· Collection rate: 250 g / 15 min

· Purity: 98–99%

· Voltage: 220 V

· Voltmeter: 5–500 V

· Material: AISI‑304 stainless steel

· Electrodes: 1050 anodised aluminium (15 microns)

· Vibrator warranty: 10 years

· Generator warranty: 5 years

· Manufactured: 100% in Europe
