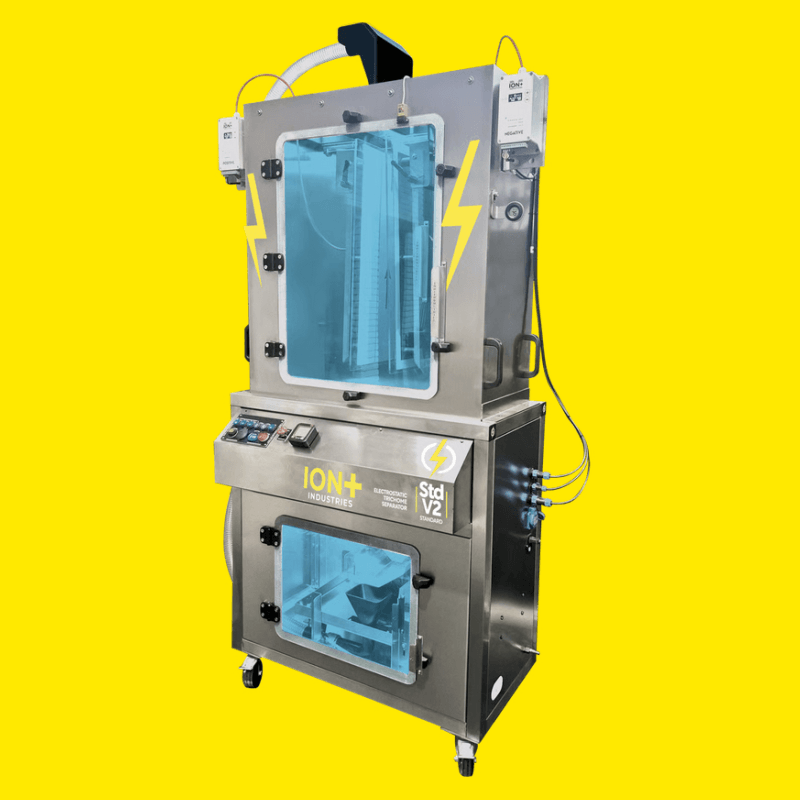

STANDARD V2 – Electrostatic Trichome Separator – Ion+ Industries

Superior performance for professional production

The STANDARD V2 electrostatic trichome separator redefines electrostatic purification and filtration with a robust, stable design optimised for long working hours. Its processing capacity of 1 to 1.5 kg per hour makes it the ideal choice for laboratories, extraction rooms and producers who need high throughput without compromising on precision.

100% European manufacture

All critical components — frame, electrodes, vibrator and generators — are manufactured in Europe, guaranteeing reliability, durability and the availability of spare parts in Morocco, Málaga, Madrid and Barcelona.

Materials and design

· Frame made of AISI‑304 stainless steel

· Electrodes made of 1050 anodised aluminium (15-micron coating)

· High-quality European components

· Reinforced design for stability under heavy loads

Vibrator (3DMITA – Spain)

· Manufactured by 3DMITA, a company with 15 years’ experience

· 10-year warranty

· Tested for over 15 years in seed counting machines

Electrostatic generators

· European components heat-sealed with silicone

· Protection against dust and moisture

· 5-year warranty

Capacity and performance

· Processing: 1–1.5 kg/h

· Collection: 250 g every 15 minutes

· Purity: 98–99%

Easy to use

· No professional experience required

· Intuitive and safe system

· Built-in voltmeter (5–500 V) with warning light

Optimal operating conditions

· Temperature: –6°C to 12/15°C

· Recommended humidity: 35%–45%

· Prevents clogging and improves filtration efficiency

Minimal maintenance

· Protected components

· Occasional cleaning of seals with alcohol

· Quick vacuuming to prevent dust build-up

Safety

· Complies with CE

standards

· Doors open only when plates are switched off

· Low voltage → minimal risk

Anti-static bars

· Complete static discharge

· Uniform particle distribution

· Higher speed without loss of quality

Transport and delivery

· Manufacturing time: 10 days approx.

· Can be dismantled to fit onto a European pallet

· Easy to transport in a standard van

Technical specifications

· Height: 200 cm

· Length: 98 cm

· Depth: 54 cm

· Weight: 100 kg

· Capacity: 1–1.5 kg/h

· Collection rate: 250 g / 15 min

· Purity: 98–99%

· Voltage: 220 V

· Voltmeter: 5–500 V

· Material: AISI‑304 stainless steel

· Electrodes: 1050 anodised aluminium (15 microns)

· Vibrator warranty: 10 years

· Generator warranty: 5 years

· Manufactured: 100% in Europe
